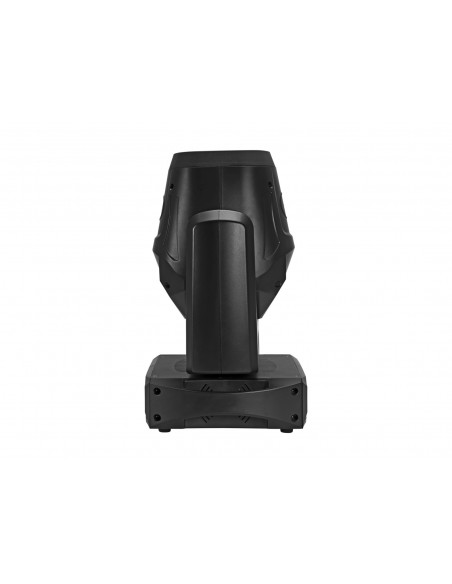

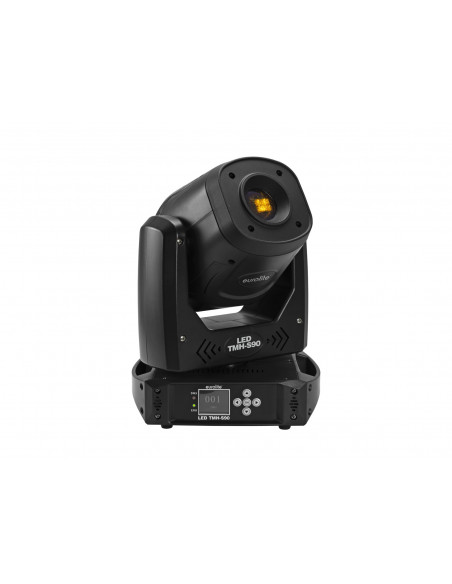

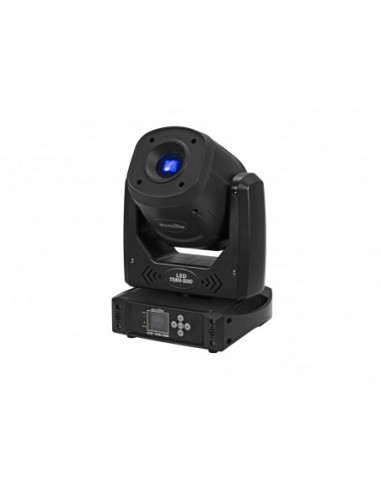

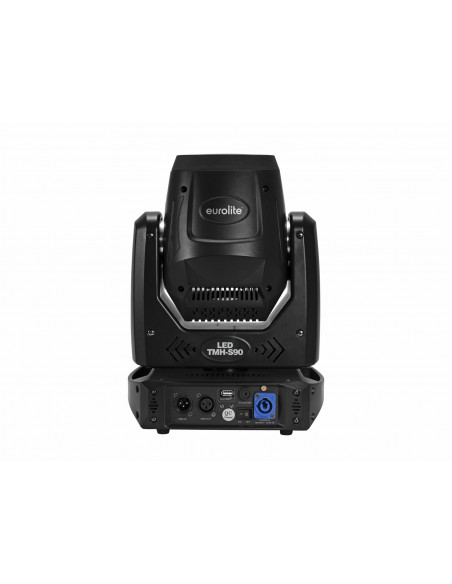

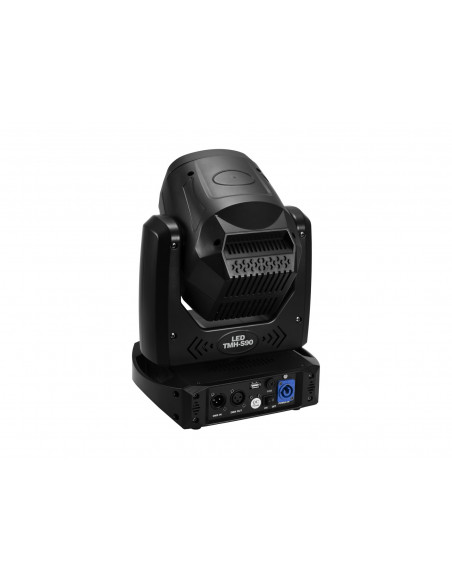

LED Moving Head spot with color wheel, static and rotating gobo wheel, prism and focus
- Equipped with a cold white 90 W COB LED
- Positioning within 540° PAN and 200° TILT
- Exact positioning via 16-bit PAN/TILT movement resolution
- Auto, music, master/slave and DMX mode
- Rotating 3-facet prism
- The prism rotates at different speeds
- Strobe effect with 2-30 flashes per second
- Built-in programs
- Electronic dimmer (0-100%)
- Motorized focus
- Automatic position correction
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LC display for easy configuration
- Additional rubber feet protect the device when positioned on the floor
- LED: 1 x COB (chip-on-board) 90 W cold white (CW)
- Color wheel 1 x 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
shake effect - Gobo wheel with rotating gobos, 6 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 15 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; Sound to light via Microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Preprogrammed in EASY SHOW
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T 2 A |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 90 W cold white (CW) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 2 - 30 Hz |
| Equipment: | Prism 3-fold; gobo wheel with rotating gobos rotating; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: | Color wheel 1 x 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
Shake effect
Gobo wheel with rotating gobos, 6 gobos and open
Outside diameter 21,8mm
Image diameter 16mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; Sound to light via Microphone; stand-alone; Master/slave function; EASY SHOW; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx |
| Housing color: | Black |
| Dimensions: | Width: 25,0 cm
Depth: 20,5 cm
Height: 35,0 cm |
| Weight: | 6,20 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
